| App Filter - Cabinet Width |
Dish Traditional 24 in. |
| App Filter - Stainless Steel Interior |
No |
| App Filter - Product Type |
Dish Built-In Top Control |
| App Filter - WiFi Connect |
Optional |
| App Filter - Food Disposer |
Yes |
| App Filter - Bottle Wash |
No |
| Handle |
Rounded Handle |
| Installation |
Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included |
| Handle Color |
Stainless Steel |
| Door Style |
Long Door with Top Controls |
| Door Appearance |
Contour door |
| Color Appearance |
Stainless Steel |
| Control Panel Color |
Color Matched |
| Handle Design |
Designer Style |
| Power Connection |
Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Calrod Heater Watts |
800/500 |
| Volts/Hertz/Amps |
120v; 60Hz; 7.1A |
| Labor Warranty |
Limited 1-year entire appliance |
| Warranty Notes |
See written warranty for full details |
| Parts Warranty |
Limited 1-year entire appliance |
| Door Insulation |
Insulation Mastic |
| Quiet Package |
59 dBA |
| Motor Type |
Single Speed |
| Quiet Features |
Quiet Water Valve Sealed Toe Kick |
| Height w/ Legs Retracted - Minimum Height |
33.375 in |
| Overall Depth |
24 in |
| Cabinet Width |
24 in |
| Net Weight |
63 lb |
| Overall Width |
23.75 in |
| Approximate Shipping Weight |
80 lb |
| Overall Height |
34 in |
| Overall Depth with Handle |
25.6 in |
| Height w/Legs Extended - Maximum Height |
34.625 in |
| Wash System |
500 Series |
| Tub Type |
Tall Tub |
| Leveling System |
4 Leveling Legs |
| OU Certified |
No |
| Number of Place Settings |
14 |
| Tub Liner |
Plastic |
| Dishwasher Options |
Child Lock Delay Start 1-12 Hr. Dry Boost™ Heated Dry Sabbath Mode Sani (Certified to NSF Standard 184) Start/Reset Steam PreWash Wash TempBoost |
| Latch |
Pull with Handle |
| Number of Options |
8 |
| Style |
Built-In Top Control |
| Water Filtration System |
100% Filtration with Piranha Hard Food Disposer and Removable Filter |
| Rack Features |
1 Piece Silverware Basket with 3 Cell Covers Ball-Tipped Tines |
| Door Liner |
Clean Design with Plastic |
| Dishwasher Cycles |
Heavy Wash Light Wash Normal Wash Rinse |
| Rack Color |
Silver |
| Dispenser |
Rinse Aid with Indicator and Adjustment |
| WiFi Connect |
Optional (Requires part no. PBX23W00Y0) |

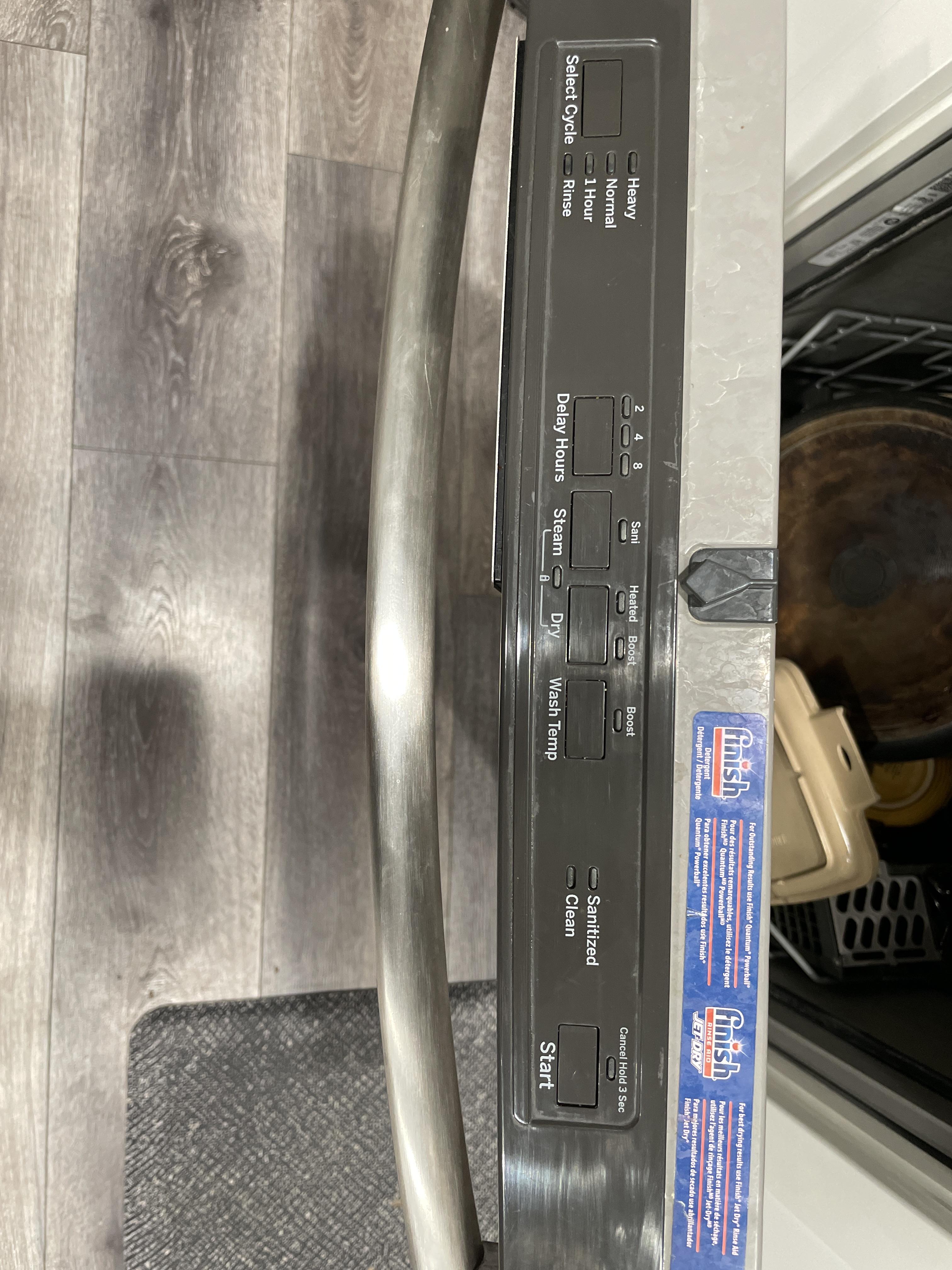

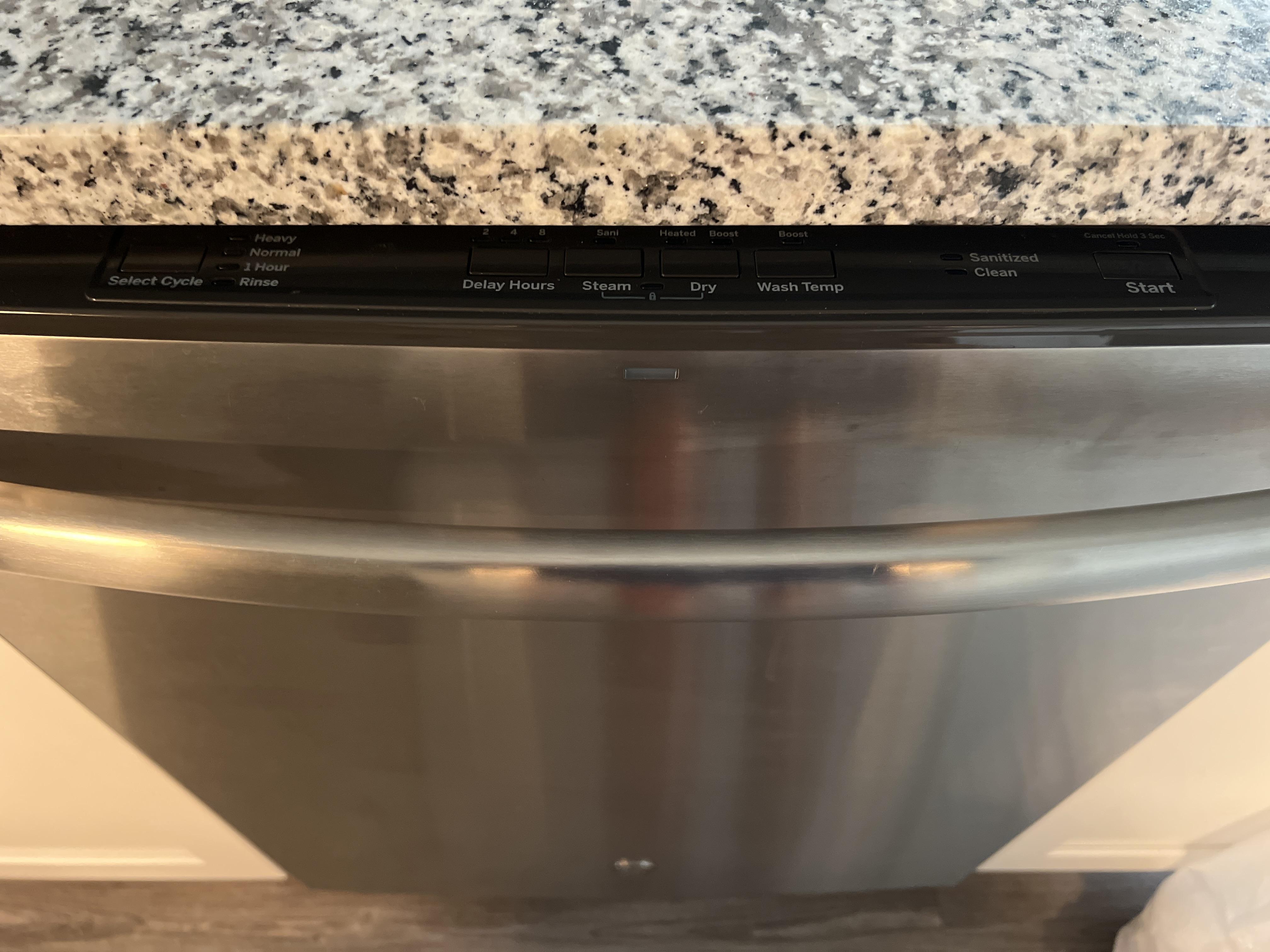

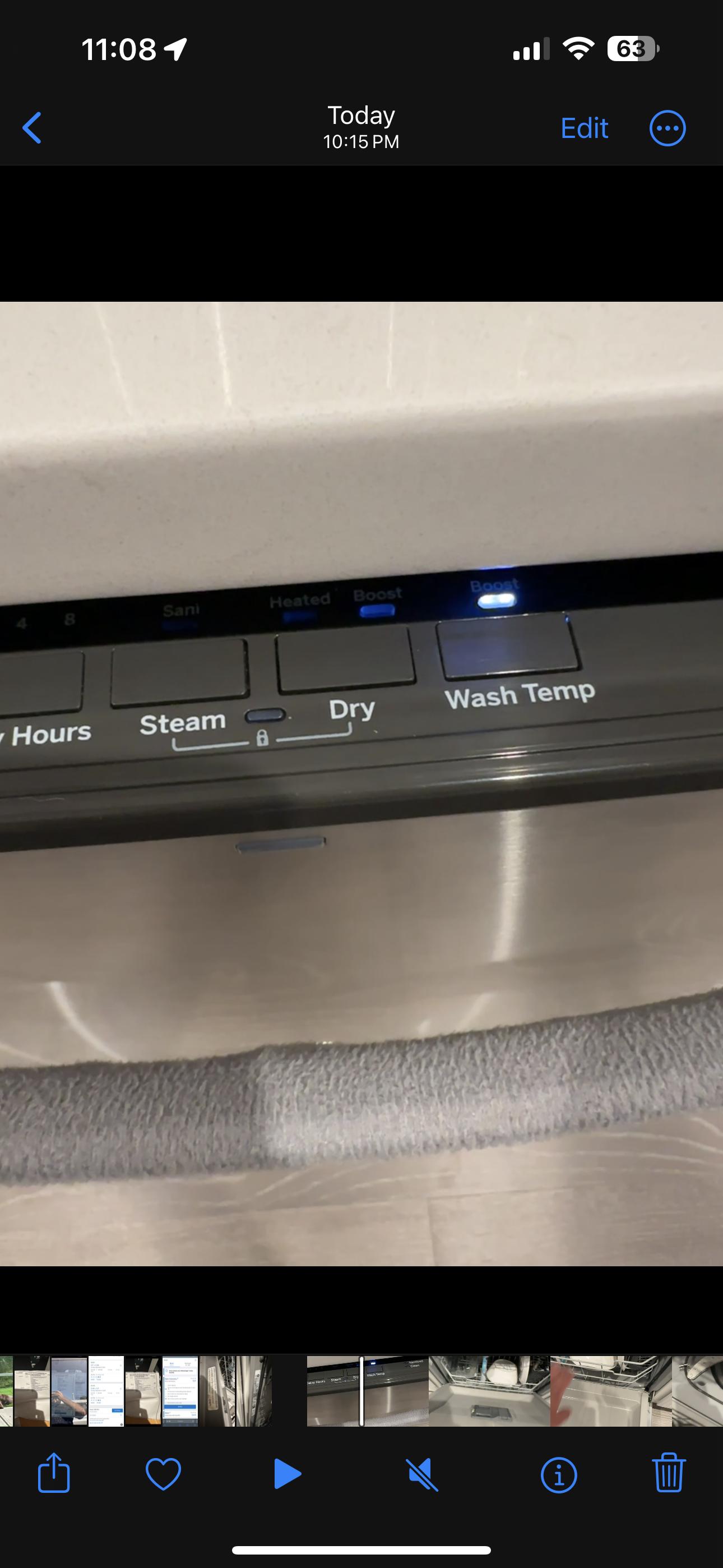

| Control Type |
6 Touchpads Electronic Tactile Buttons Top Controls |
| Dishwasher Drying Features |
Dry Boost™ Heated Dry - On/Off |
| Wash Arms |
2 Wash Levels Lower Middle |
| Wash System Features |
Automatic HotStart Automatic Temperature Control Dedicated Silverware Jets (on Wash Arm) Drain Pump Dual Pumps and Motors Piranha™ Hard Food Disposer with removable filter |
| Exterior Style |
Traditional |
| Connected Capabilities |
Amazon Alexa Amazon Dash Replenishment IFTTT Sonos The Google Assistant |
| Upper Rack |
Ball-Tip Tines Removable |
| Dishwasher Control Features |
1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators Audible End-of-Cycle Signal Control Lock Cycle Countdown with Bi-Color LED Status Light on door Last Cycle Memory Start/Reset Pad |
| Number of Cycles |
4 |
| Tub and Door Liner |
Gray Plastic |
| Sabbath Mode |
Yes |
| Showroom Power Mode |
Yes |
